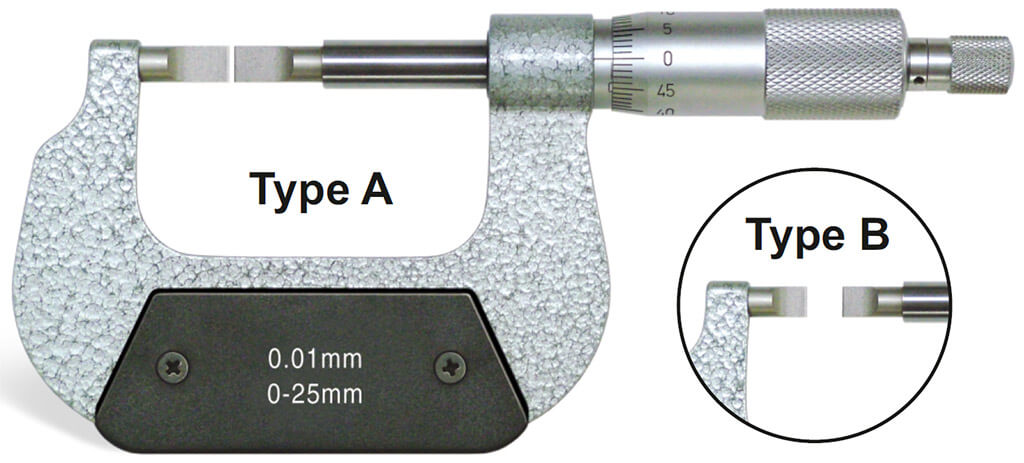

Blade Outside Micrometer
Features
  • Measures groove diameter of shafts, keyways.
  • Ratchet stop for constant force.
  • Non-rotating spindle.
SPECIFICATIONS & DIMENSIONS
(mm)
Order No. Range Graduation Type Accuracy (±) a L
323-25A 0-25mm 0.01mm A 4μm 32 57
323-50A 25-50mm 0.01mm A 4μm 44.5 82
323-75A 50-75mm 0.01mm A 5μm 57 107
323-100A 75-100mm 0.01mm A 5μm 69.5 132.6
323-25B 0-25mm 0.01mm B 4μm 32 57
(Unit: mm)

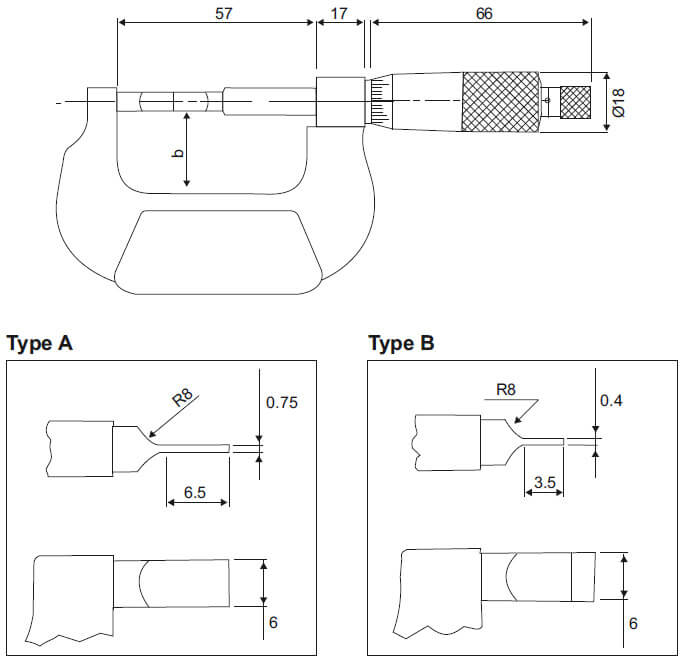

Blade Outside Micrometer - SPECIFICATIONS & DIMENSIONS
