Indicators
Dial Test Indicators
Products >> Classic Measuring Instruments >>
Indicators
>>

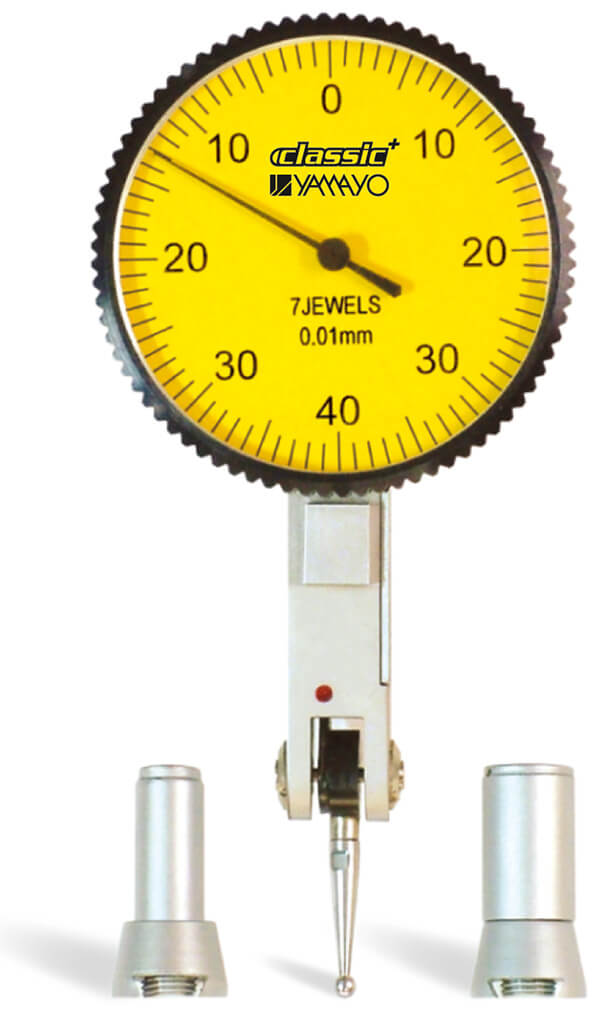

Dial Test Indicators
Features
Provides easy and accurate measurements of narrow and recessed areas.
Two way measuring directions
High Sensitivity and Quick Response.
Jeweled Movement.
Carbide Contact point is provided as standard.
Supplied with dovetail locks.
SPECIFICATIONS & DIMENSIONS
(mm)
Order No.
Range
Graduation
Accuracy (±)
Hysteresis
Dial Reading
DØ
L
445-08
0.8mm
0.01mm
13μm
3μm
0-40-0
30
21.5
446-08
0.8mm
0.01mm
13μm
3μm
0-40-0
38
21.5
447-02
0.2mm
0.002mm
6μm
2μm
0-100-0
37.5
16
(Unit: mm)
