Height Measurements
Digimatic Double Beam Height Gauges
Products >> Classic Measuring Instruments >> Height Measurements >> Digimatic Double Beam Height Gauges

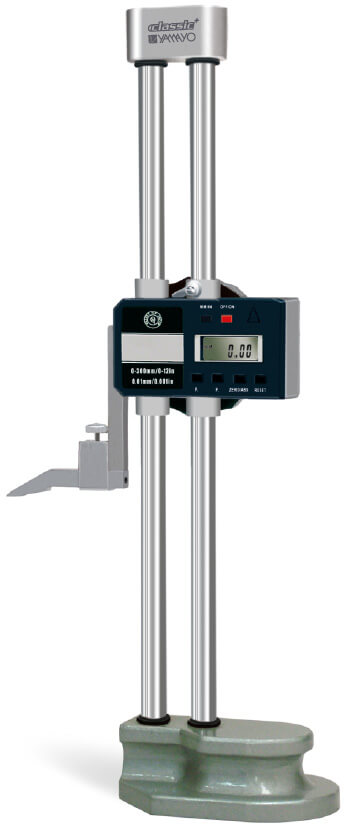

Digimatic Double Beam Height Gauges
Features
  • Can easily measure the height of small parts.
  • The clear LCD screen provides digital read out to 0.01 mm for error free reading.
  • Double columns provide high stability.
  • Provided with a feed wheel for easy coarse feeding.
  • Provided with carbide tipped scriber.
  • With locking screw.
  • Functions : Zero setting, presetting, inch/mm conversion.
  • Power supply : One SR44 Battery.
SPECIFICATIONS & DIMENSIONS
(mm)
Order No. Range Resolution Accuracy (±)
251-300 300mm/12” 0.01mm/0.0005” 0.04mm
251-600 600mm/24” 0.01mm/0.0005” 0.05mm
(Unit: mm)

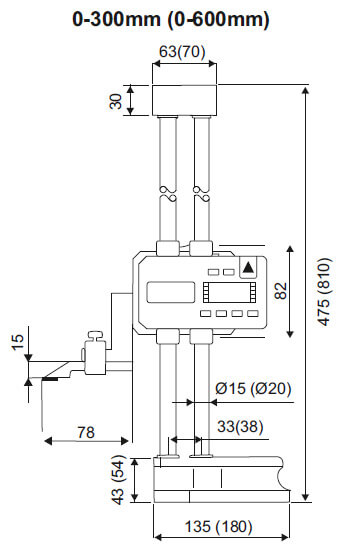

Digimatic Double Beam Height Gauges - SPECIFICATIONS & DIMENSIONS
 Download PDF
