Boring Heads / Kits
>>
F1 Rough Boring Heads

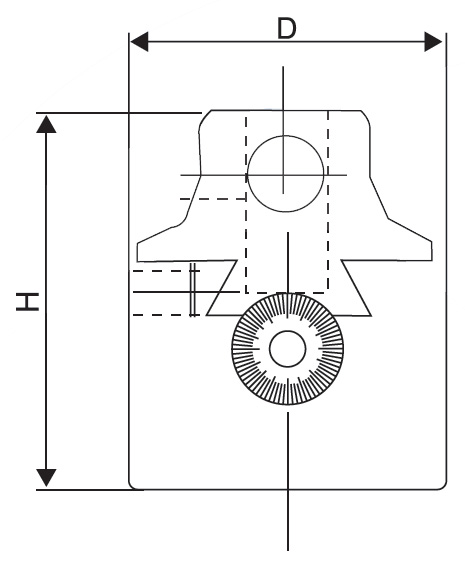

SPECIFICATIONS & DIMENSIONS
(mm)
MODEL
D
H
MAX OFFSET
BORING BARDIA
MIN RADUATION
DIAL OF BORING
F1-12mm
50MM
63
16mm
12mm
0.01mm
10-125mm
F1-18
75MM
80
25mm
18mm
0.01mm
12-225mm
F1-25mm
100MM
88
41mm
25mm
0.01mm
15-630mm
(Unit: mm)
