Boring Heads / Kits
>>

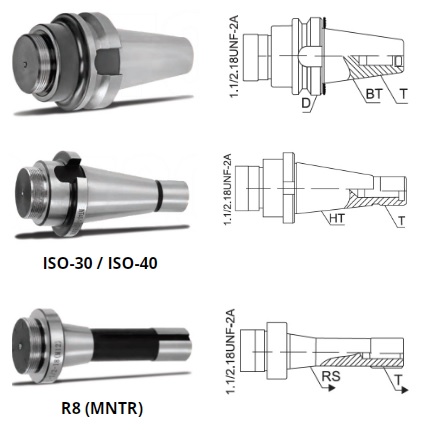

F1 Rough Boring Heads Shanks
SPECIFICATIONS & DIMENSIONS
(mm)
MODEL
T
L
THREAD
BT30 / BT40 / BT50
M16 - 2.0P
102
1.1/2"X18
NT (ISO)30
M12 - 1.75P
102
1.1/2"X18
NT (ISO) 40
M16 - 2.0P
135
1.1/2"X18
R8
M12 / 12 X 1.5/ 7/16 - 20UNF
132.5
1.1/2"X18
